R36S / R36H / R35S Replacement LCD Screen — 3.5" 640×480

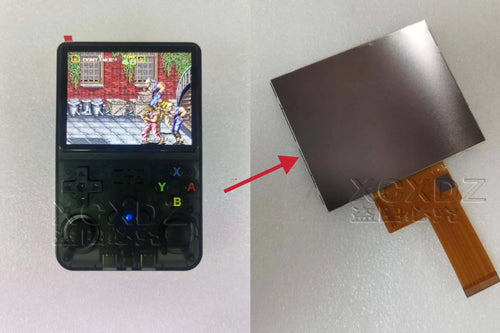

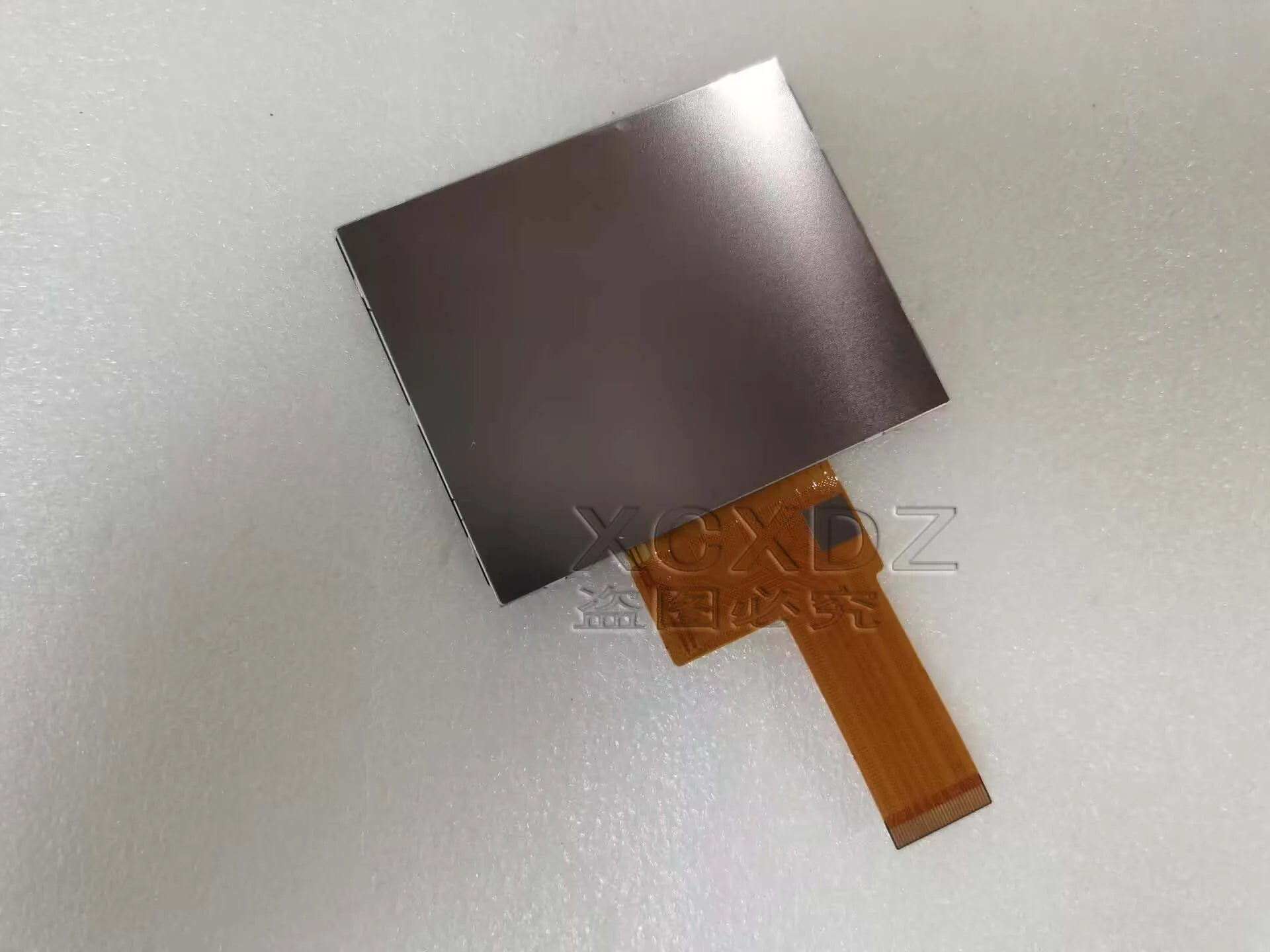

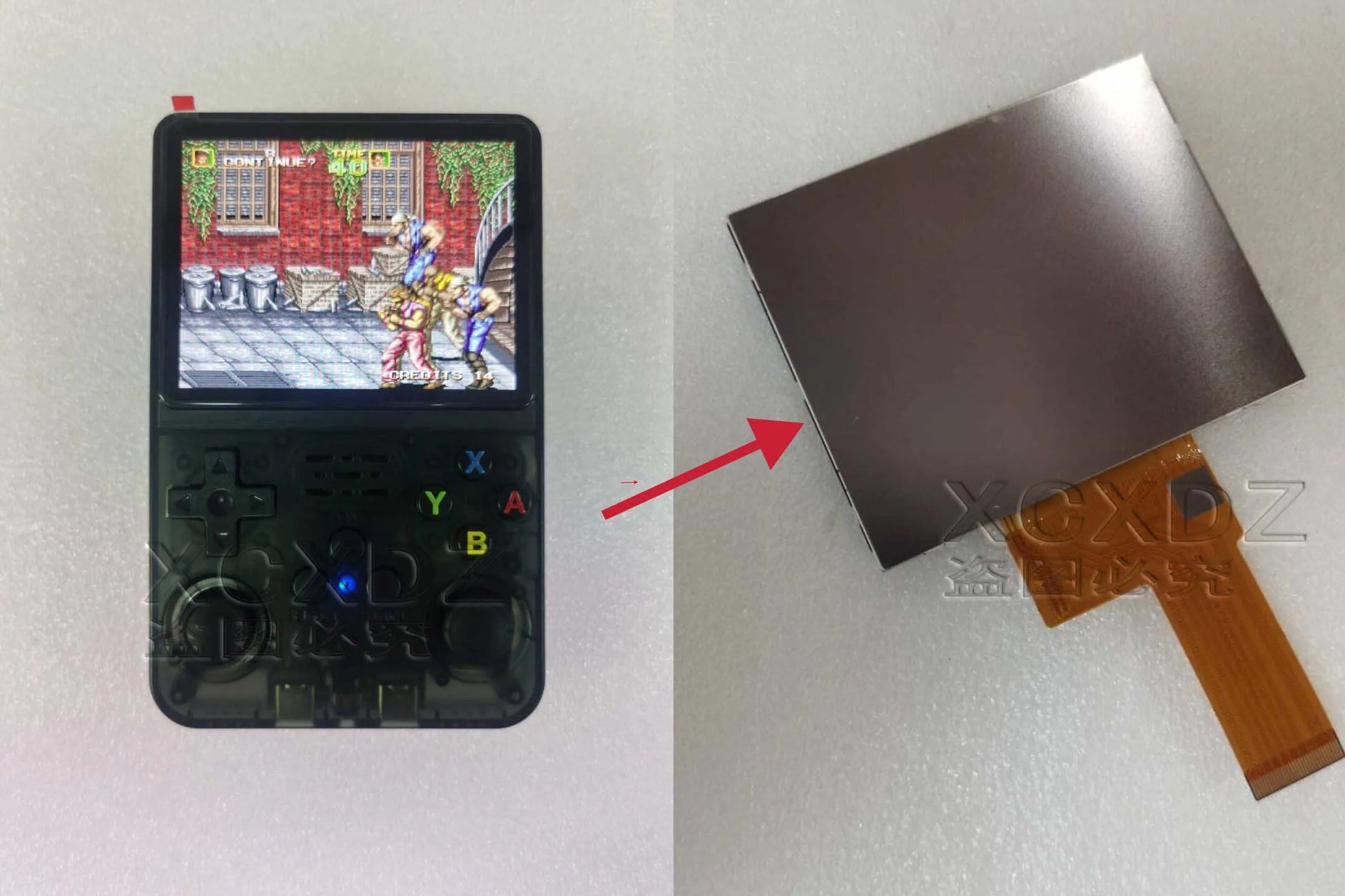

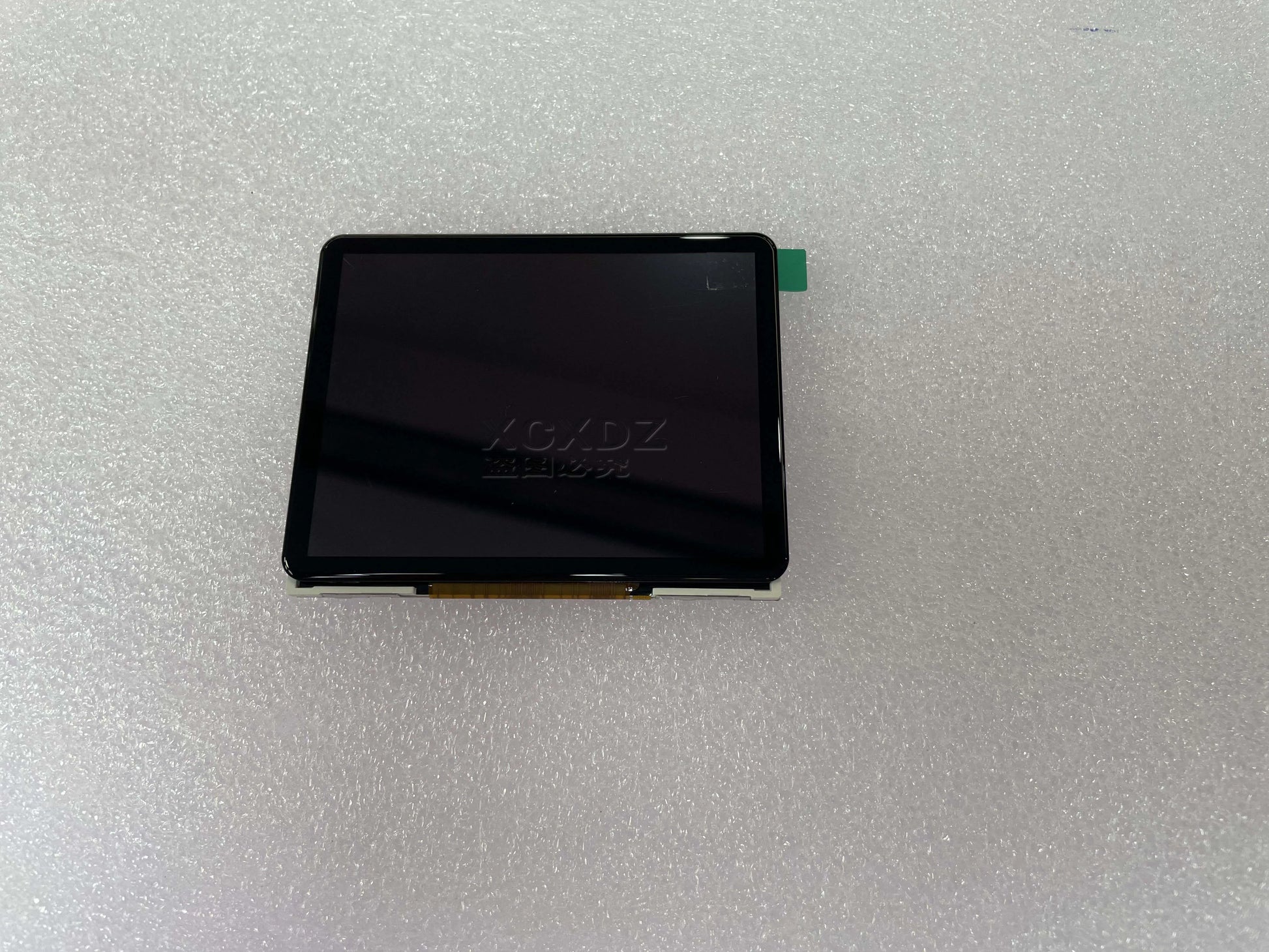

This R36S replacement LCD screen is a drop-in 3.5-inch 640×480 IPS panel (HL-PGDM035HD-C-V2) for the R36S, R36H and R35S. If your screen is cracked, scratched or dead but the console still powers on, this brings it back to life for a fraction of the cost of a new device — and keeps a perfectly good board out of landfill.

When an R36S replacement LCD screen is the right fix

Screens are the part these consoles most often lose first: a drop onto a corner, a heavy object in the same bag, a scratch deep enough to catch light. Meanwhile the board underneath usually survives everything. Fitting an R36S replacement LCD screen restores full brightness, colour and sharpness at genuine factory specification — this is the same 640×480 IPS panel type the console shipped with, not a lower-grade substitute.

Key Features

• 3.5" IPS panel, 640×480 — the specification the console shipped with
• Model-specific variants for R36S, R36H and R35S — choose yours from the menu
• Restores full brightness, contrast and colour on a damaged unit
• The sustainable option: repair the console you own instead of replacing it

⚠️ Before you order

This is the bare LCD panel and does not include the front cover glass. The LCD and its cover cannot be separated once bonded — if your front cover glass is also broken, you need a panel-with-cover part instead. Not sure which model or hardware revision you have? Check our hardware identification checklist or the community-maintained R36S wiki before ordering.

Fitting the panel

Fitting requires opening the console and reseating one ribbon cable — a calm 20-minute job with a small Phillips screwdriver. Work on a clean surface, keep screws grouped, and disconnect the battery before touching the ribbon. If you've never opened a handheld before, watch a teardown video first and take your time; nothing inside is fragile if you're patient. While the shell is open it's also the perfect moment to fit a fresh tempered glass protector so the new panel starts life defended — and an R36S silicone case makes the next drop a non-event.

What's in the Box

• 1 × 3.5" 640×480 IPS LCD panel for your selected model (R36S, R36H or R35S)

Tools and cover glass are not included.

✅ Free worldwide shipping · ✅ 30-day money-back guarantee

Compatibility notes

The R36S family has shipped in several board revisions, and while this panel type (HL-PGDM035HD-C-V2) is the common fitment across R36S, R36H and R35S, it's worth a two-minute check before ordering: open the battery door, note your board marking, and match it against our checklist. Ordering the correct model variant from the menu means the ribbon connector lines up first time and the panel sits flush without shimming.

R36S replacement LCD screen — quick questions

How do I know which model variant to order?
Choose the variant matching your console — R36S, R36H or R35S. If unsure, our hardware checklist identifies your unit in a minute.

Do I need special tools?
Just a small Phillips screwdriver and patience. No soldering — the panel connects by ribbon cable.

My front glass is cracked too — is this the right part?
No. This is the bare LCD; the LCD and cover can't be separated once bonded, so a broken cover needs a panel-with-cover part instead.

Is the panel the same quality as the original?
It's the same 3.5" 640×480 IPS specification (HL-PGDM035HD-C-V2) the console shipped with.

How long does the repair actually take?
First-timers should budget half an hour working calmly; people who have opened a handheld before finish in ten to fifteen minutes. The slowest step is simply keeping track of the screws.
